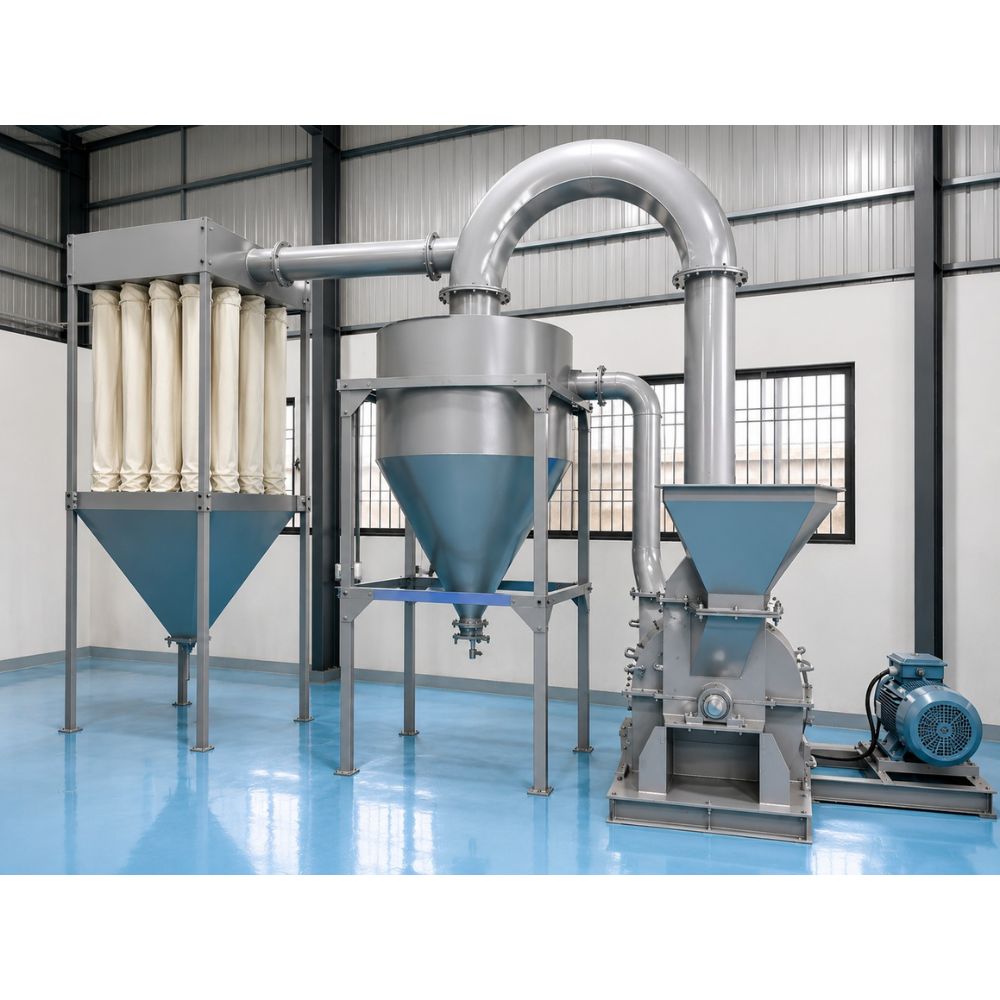

Unique and Smart Machinery manufactures Impact Pulverizers with Dust Collector designed for grinding and pulverizing various dry materials into fine powder. This machine is suitable for commercial spice processing units, food processing industries and other industrial powder manufacturing applications where efficient grinding and proper dust management are important.
During impact pulverizing, fine powder particles may become airborne around the feeding section, grinding chamber, discharge outlet and material handling points. An integrated dust collection system helps capture these particles, reduce dust dispersion and maintain a cleaner production environment. The combination of an impact pulverizer and a dust collection arrangement provides a practical solution for businesses looking to improve powder processing operations and plant housekeeping.
The machine configuration can be customized according to the material being processed, production capacity, required powder fineness and installation requirements.
Working Principle of Impact Pulverizer with Dust Collector
An impact pulverizer works by reducing material size through impact between the material and the grinding elements inside the grinding chamber. The material is fed into the machine, where the rotating components generate the impact action required for pulverization. The processed powder is then discharged through the designated outlet.
During grinding and powder discharge, dust particles may escape into the surrounding atmosphere. The dust collection system helps capture these particles through appropriately positioned dust hoods or collection points. Dust-laden air travels through ducting towards the cyclone separator or filtration unit, where particles are separated from the airflow.
The typical dust collection process follows this sequence:
Dust Generation Point → Dust Hood → Ducting → Cyclone/Filter → Dust Collector → Blower
Depending on the system configuration, the cyclone separates a portion of the heavier particles, while the filter captures finer airborne dust. The collected material is transferred into a dust collection chamber or suitable collection bags. An industrial blower provides the airflow needed to move dust-laden air through the system.
The exact arrangement depends on the pulverizer capacity, material characteristics, dust generation rate and required airflow.
Main Components of the Dust Collection System
1. Dust Hood
The dust hood is positioned near dust-generating points, such as the feeding section, grinding chamber or powder discharge area. It helps capture airborne particles close to their source and limits dust spreading throughout the production area.
2. Ducting System
Ducting connects the dust collection points to the cyclone or filter unit. Its design considers duct diameter, total length, bends, airflow velocity and system resistance to support effective dust transportation.
3. Cyclone Separator
A cyclone separator uses centrifugal action to remove a portion of the heavier dust particles from the moving air. This can reduce the dust load entering the filter, depending on the material and operating conditions.
4. Filter Unit
The filter unit captures fine airborne particles that pass through the initial separation stage. The filter media should be selected according to particle size, dust concentration, operating conditions and maintenance requirements.
5. Dust Collection Chamber
The collection chamber provides a designated space for accumulating separated powder and dust. Its size and configuration depend on the quantity of material collected and the required collection frequency.
6. Industrial Blower
The blower creates the airflow needed to draw dust from the pulverizing area through the ducting and filtration equipment. Blower capacity should be selected according to the required airflow and the resistance of the complete system.
7. Collection Bags
Collection bags can be used to collect separated material, depending on the equipment arrangement. They provide a convenient method for handling collected powder and dust.
8. Supporting Structure
The supporting structure holds the dust collection equipment in position and provides a stable installation. It can be designed to suit the available floor space and plant layout.
Key Benefits of Impact Pulverizer with Dust Collector
An appropriately designed impact pulverizer with dust collection offers several advantages for industrial powder processing operations.
- Effective Dust Management: Helps capture fine dust generated during pulverizing and powder handling.
- Cleaner Production Area: Supports improved cleanliness around the grinding and discharge sections.
- Reduced Powder Loss: Helps collect escaped powder that might otherwise disperse into the surrounding environment.
- Improved Housekeeping: Helps minimize dust accumulation on floors, machinery and nearby surfaces.
- Better Working Conditions: Supports dust control when combined with suitable ventilation and workplace safety measures.
- Equipment Protection: Helps limit the accumulation of airborne powder on surrounding machinery and equipment.
- Flexible Installation: Can be configured for individual pulverizers or multiple dust-generating points, subject to system design.
Actual performance depends on machine configuration, airflow, filter efficiency, installation quality and regular maintenance.
Customized Design for Industrial Applications
Every powder processing facility has different requirements. Therefore, the dust collection system should be selected based on the number of machines, pulverizer capacity, material type, dust generation rate, duct length, number of bends, required airflow and filter type.
Unique and Smart Machinery can configure the equipment according to the intended application, available installation space and production requirements. The system may include a cyclone separator, filtration unit, dust collection chamber, blower, ducting and suitable collection arrangements.
For combustible materials, including certain spice powders, the potential risk of combustible dust should be assessed by qualified professionals. Appropriate grounding, ignition control and explosion protection measures should be considered where required.
Applications
The Impact Pulverizer with Dust Collector can be used in various industrial powder processing applications, including:
- Spice grinding and pulverizing plants
- Chilli powder processing units
- Turmeric and coriander grinding
- Cumin and other dry spice processing
- Food ingredient powder manufacturing
- Dry material pulverizing operations
- Powder sieving and handling facilities
- Commercial and industrial grinding units
The suitability of the machine depends on the material properties, desired particle size and production requirements.
Conclusion
The Impact Pulverizer with Dust Collector from Unique and Smart Machinery is designed to support efficient pulverizing operations while helping control dust generated during grinding and powder handling. By combining impact grinding with a suitable dust collection arrangement, the system supports cleaner production areas, improved housekeeping and reduced powder loss.
With a customized configuration based on machine capacity, material characteristics, airflow requirements and plant layout, this solution can be adapted to different industrial powder processing applications. It is a practical choice for manufacturers seeking an integrated pulverizing and dust management solution for their production facilities.
Frequently Asked Questions
Q: What is an Impact Pulverizer with Dust Collector used for?
A: It is used for size reduction and powder processing of suitable dry materials, including spices, turmeric, herbs and other suitable products, with a connected dust collection arrangement.
Q: Can this machine be used for turmeric grinding?
A: Yes, suitable configurations can be used for turmeric grinding depending on the raw material and required powder fineness.
Q: What is the purpose of the dust collector?
A: The dust collection arrangement helps manage fine particles generated during the grinding process and supports controlled powder handling.
Q: Can the pulverizer be used for spice grinding?
A: Yes, it can be configured for suitable dry spice grinding applications.
Q: Can it be used for herbs and Moringa leaves?
A: Yes, suitable dried herbs and Moringa leaves can be processed according to the required grinding conditions and final product specifications.
Q: Can the machine be supplied in Stainless Steel?
A: Yes, SS-304 contact parts or complete Stainless Steel construction can be offered depending on the application.
Q: Can powder fineness be customized?
A: Yes, sieve selection and machine configuration can be selected according to the required powder fineness.
Q: Does the machine have a fixed production capacity?
A: Actual capacity depends on the material, moisture, feed size, required mesh, powder fineness, feeding rate and operating conditions.
