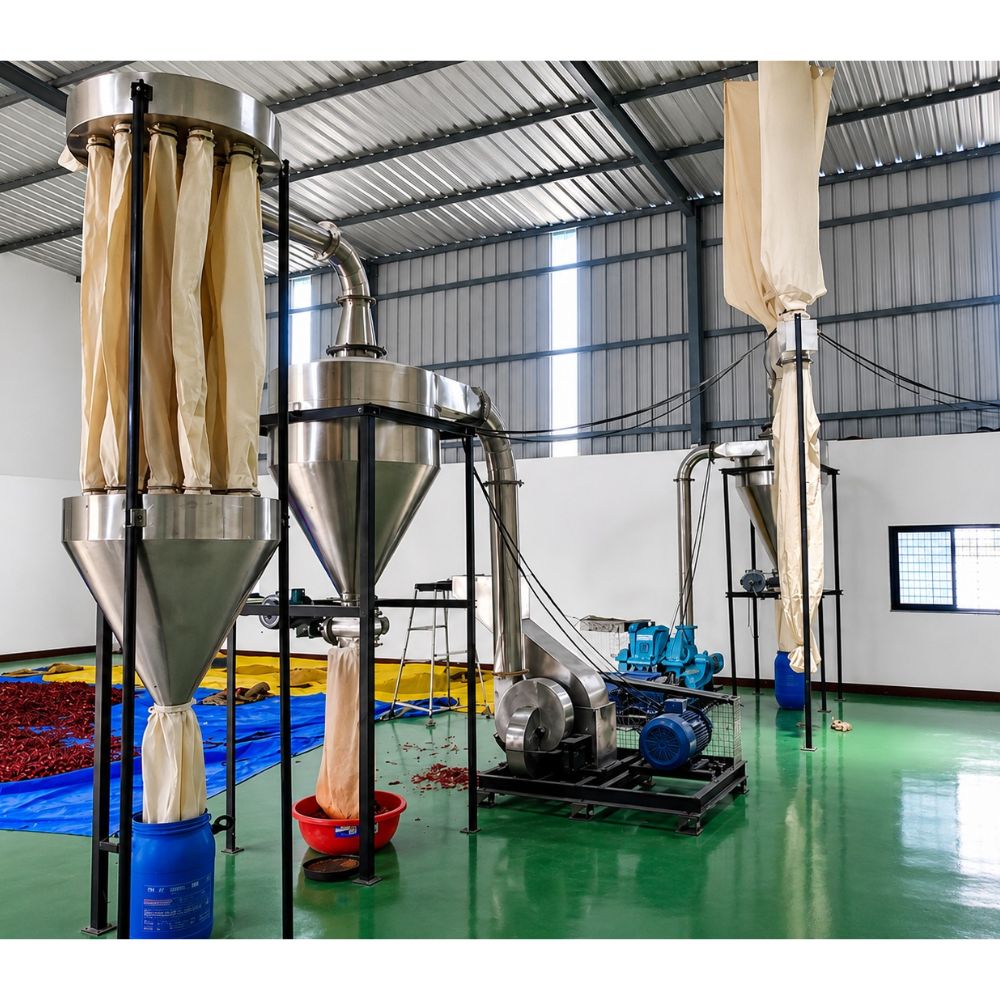

A Chilli Grinding Machine with Dust Collector is an industrial solution designed for grinding dry red chillies into fine chilli powder while helping control the dust generated during the grinding process. Dust management is an important requirement in spice processing plants, as fine powder particles can become airborne during grinding, pulverizing, sieving, feeding, material transfer and powder handling. An integrated dust collection system helps maintain a cleaner production environment, reduce airborne dust and improve overall plant housekeeping.
The Industrial Dust Collection System for Spice Processing Plants is designed to collect dust particles generated at different processing points through a properly arranged network of hoods, ducting, filtration equipment and a blower. Depending on the plant layout and production requirements, the system can be customized for individual chilli grinding machines or multiple spice processing machines operating within the same facility.
Working Principle of the Chilli Grinding Machine with Dust Collector
During chilli grinding, fine powder particles may escape from the grinding chamber, feeding section and powder discharge area. The dust collection system helps capture these particles at their source and directs dust-laden air through a ducting network towards the collection and filtration equipment.
The typical working process follows this sequence:
Dust Generation Point → Dust Hood → Ducting → Cyclone/Filter → Dust Collector → Blower
Dust hoods are positioned near the dust-generating areas to capture airborne particles. The collected air travels through properly designed ducting towards a cyclone separator or filtration unit. A cyclone can separate a portion of the heavier particles, while the filter captures finer dust according to the selected filtration arrangement. The dust is collected in a designated chamber or collection bags, and the blower provides the airflow required to move air through the system.
The exact configuration depends on the grinding machine capacity, type of spice powder, dust characteristics and required airflow.
Main Components of the Industrial Dust Collection System
1. Dust Hood
The dust hood is installed near dust-generating points such as the grinding chamber, feeding section or discharge outlet. Its purpose is to capture dust as close to the source as practical and minimize its spread into the surrounding work area.
2. Ducting System
The ducting network transports dust-laden air from the collection points to the cyclone or filter unit. Duct diameter, length, bends and airflow velocity should be considered during system design to support effective dust transportation.
3. Cyclone Separator
A cyclone separator uses centrifugal action to separate a portion of the heavier dust particles from the airflow. It can reduce the dust load reaching the downstream filter, depending on particle characteristics and system design.
4. Filter Unit
The filter unit captures fine airborne particles that pass through the initial separation stage. The appropriate filter media and filtration arrangement should be selected according to the particle size, dust concentration, operating conditions and cleaning requirements.
5. Dust Collection Chamber
The dust collection chamber receives separated material and provides a designated area for dust accumulation. Its size and configuration depend on the quantity of dust generated and the required collection frequency.
6. Industrial Blower
The blower generates the airflow required to draw dust from the grinding and processing points through the ducting and filtration equipment. Its capacity should be selected based on the total airflow demand and system resistance.
7. Collection Bags
Collection bags can be used for collecting separated powder or dust, depending on the system arrangement. They support convenient material handling and disposal or recovery where appropriate.
8. Supporting Structure
The supporting structure provides a stable arrangement for the dust collector, cyclone, ducting and associated equipment. It can be designed to suit the available installation space and plant layout.
Key Benefits of a Chilli Grinding Machine with Dust Collector
An appropriately designed dust collection system offers several operational advantages for chilli powder manufacturers and spice processing facilities.
- Airborne Dust Control: Helps capture dust produced during chilli grinding and powder handling.
- Cleaner Production Area: Supports a cleaner and more organized working environment.
- Reduced Powder Loss: Helps collect escaped powder that may otherwise disperse into the surrounding area.
- Improved Housekeeping: Reduces dust accumulation on floors, machinery and nearby surfaces.
- Better Working Conditions: Helps manage airborne dust exposure when combined with suitable ventilation and workplace safety measures.
- Equipment Protection: Helps limit dust accumulation on surrounding machinery and equipment.
- Flexible Installation: Can be configured for individual grinding machines or multiple dust-generating points.
Actual performance depends on the system design, installation quality, filter selection, maintenance and operating conditions.
Customized Dust Collection System for Spice Processing Plants
Every spice processing plant has different production requirements. Therefore, the dust collection capacity should be selected according to the number of machines, grinding capacity, type of spice, quantity of dust generated, duct length, number of bends, required airflow and filter type.
A customized system can be designed for chilli grinding, turmeric grinding, coriander grinding, cumin processing, spice pulverizing, powder sieving and other dry powder handling applications. The arrangement may include a cyclone separator, filter unit, dust collection chamber, blower and appropriately sized ducting.
Factors such as available installation space, operating hours, cleaning requirements and maintenance accessibility should also be considered before finalizing the system configuration. For combustible spice dust, suitable explosion protection, grounding, ignition control and other applicable safety measures should be evaluated by qualified professionals.
Applications
The Chilli Grinding Machine with Dust Collector is suitable for various industrial spice processing operations, including:
- Chilli powder manufacturing plants
- Spice grinding and pulverizing units
- Turmeric and coriander powder processing
- Cumin and other dry spice processing
- Powder sieving and screening operations
- Spice blending and powder handling areas
- Food ingredient processing facilities
Conclusion
The Chilli Grinding Machine with Dust Collector combines spice grinding operations with a dedicated dust management solution to support cleaner and more efficient production. By integrating dust hoods, ducting, cyclone separation, filtration, a collection chamber and an industrial blower, the system helps control dust generated during grinding and powder handling.
With a properly engineered configuration based on machine capacity, airflow requirements and plant layout, this industrial dust collection solution can support better housekeeping, reduce powder loss and help maintain a more organized spice processing environment. It is a practical option for spice manufacturers seeking a customized dust control arrangement for their production facilities.
Frequently Asked Questions
Q: What is a Chilli Grinding Machine with Dust Collector?
A: It is a grinding system designed for processing dried red chillies into powder, combined with a suitable dust collection arrangement for managing fine particles generated during grinding.
Q: What is the Chilli Grinding Machine used for?
A: The machine is used for grinding dried red chillies into chilli powder for spice-processing, masala manufacturing and food-processing applications.
Q: Why is a dust collector used with a chilli grinding machine?
A: Grinding dry chilli can generate fine powder particles. A dust collection arrangement helps manage and collect these particles and supports a cleaner working environment around the grinding area.
Q: Can this machine be used for red chilli powder?
A: Yes. The machine is designed for grinding dried red chillies into powder. The final powder characteristics depend on the raw material and selected grinding conditions.
Q: Can the chilli grinding machine be integrated with a Vibro Sifter?
A: Yes. A suitable Vibro Sifter can be integrated after the grinding stage where particle-size separation is required.
Q: Can you provide a complete chilli powder processing plant?
A: Yes. Individual chilli processing machines as well as customized chilli processing lines can be configured according to the customer’s production requirements.
Q: Can the machine include a cyclone and dust collection system?
A: Yes. Suitable cyclone, pipeline and dust collection arrangements can be incorporated according to the machine configuration, material characteristics and factory layout.
Q: Can the chilli grinding machine be manufactured in SS-304?
A: SS-304 contact parts or stainless-steel construction can be considered depending on the machine model and application requirements.
Q: What determines the capacity of a chilli grinding machine?
A: Capacity depends on chilli variety, moisture content, feed size, required powder fineness, mesh size, feeding rate, machine configuration and operating conditions.
Q: Can the chilli grinding machine be customized?
A: Yes. The machine and associated dust collection arrangement can be configured according to the customer’s product requirements, production requirement, material of construction and factory layout.
